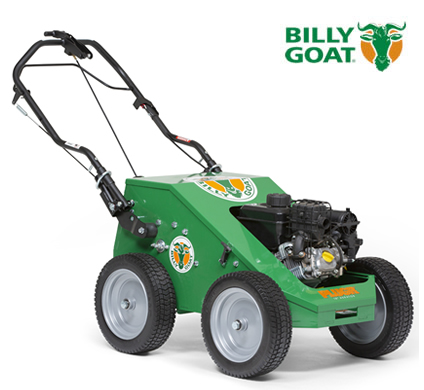

PLUGR 18 SERIES
Reciprocating: 18" Wide Mechanical Drive
MODEL#
PL1803V
DESCRIPTION
This compact 18" (46 cm) aerator is ideal for smaller property aeration or hire companies and features reciprocating cam tines that propel the unit forward and drive cores up to 7 cm deep. The unit can aerate up to 2.000m2 per hour, is simple to operate for homeowners, easy to steer without lifting and requires no add-on weights.
The easy folding handle allows for compact transport and storage. Only four tines and no chains along with a no-tool removable cover make for easy maintenance.
This PL1803V model is powered by a reliable Vanguard® engine.
SPECIFICATIONS
- Tine Pattern: 6.5cm x 19cm
- Drive Type: Self Propelled
- Wheel Type: Semi-pneumatic
- Weight: 110kg
- Length: 145cm
- Width: 61cm
- Height: 100cm
SPECIFICATION
- Engine: Vanguard
- Performance: 3.7kW
- Displacement: 169cc
- Productivity: 2000m2/h
- Working Width: 46cm / 18"
- Tine Type: Reciprocating Cam
- Tine Depth: 7cm
- Number of Tines: 4
FEATURE HIGHLIGHTS
User Friendly Controls
Handle has finger-tip controlled bail for engaging drive / tine with auto stop safety feature on PL18 Series.
Removable Cover
Quick and easy one piece hood removal for access to all components on PL18 Series.
Easy-fold Handles
Folding handles provide compact transport and storage.
Tensile Hardened Thin Wall Tines
Simple, durable screw-in design makes service simple. Four tines on PL18 Series.
ISO Mounted Handle
ISO mounted folding handles help reduce vibration and offers fatigue free operation so you can complete more work in less time!
Cam-Driven Aerators
Punches tine core depths to 7 cm even in hard soil conditions. Spring loaded rotor assist for aggressive forward motion of the tine rods.
ACCESSORIES
Optional Tines (PLUGR)
Part #: 331150, 381151, 381149, 381057, 381152
Tine sizes and styles for every turf condition. Choice: 3/8"(9,5 mm) hollow 331150 - 3/8"(9,5 mm) solid 381151 - 7/8" (22 mm) solid 381149 - 5/8"(16 mm) hollow 381057 - Zoysia Transfer 44mm hollow 381152.
Tine sizes and styles for every turf condition. Choice: 3/8"(9,5 mm) hollow 331150 - 3/8"(9,5 mm) solid 381151 - 7/8" (22 mm) solid 381149 - 5/8"(16 mm) hollow 381057 - Zoysia Transfer 44mm hollow 381152.
Service Kits (PLUGR)
Part #: 380204
Common replacement parts for your PLUGR® Series Aerators. (PLUGR® 18 - 380204 - 4 required)
Common replacement parts for your PLUGR® Series Aerators. (PLUGR® 18 - 380204 - 4 required)
