AE403 DRUM SERIES

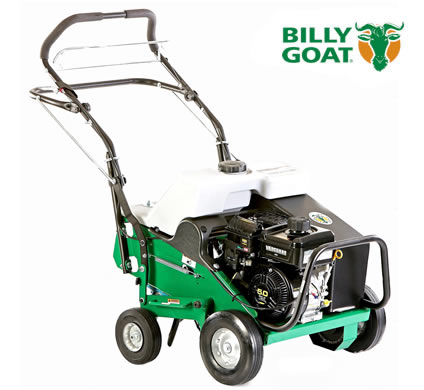

Core Aerator: 19" Mechanical
MODEL#
AE403V
Honda and Briggs and Stratton engines
DESCRIPTION

This mechanical 19" / 48cm wide aerator eliminates cumbersome filling of a conventional centre drum found on other units on the market, which are prone to wear, vibration and damage.

Billy Goat's outboard drive wheels also eliminate centre wheel slip and abuse from ramp loading with the tines engaged. Instead of bulky steel weights, water weight is positioned directly over the tines for better aeration depth.

Operators love the softest drive and tine engagement and the exclusive Lift N Lock™ feature allows the tines to be raised by simply lifting up on the handle.

The Fold-n-Go™ handles and the tilt up serviceability make service and transport convenient and simple.

This AE403V model is powered by a reliable Vanguard® engine and can aerate up to 2.000m2 per hour.

SPECIFICATIONS
  • Drive Type: Self Propelled
  • Transmission Type: Geared
  • Gears Forward: 1
  • Wheel Type: Semi-pneumatic
  • Weight: 114kg
  • Length: 145cm
  • Width: 74cm
  • Height: 133cm
SPECIFICATION
  • Engine: Vanguard
  • Performance: 3.7kW
  • Displacement: 169cc
  • Productivity: 2000m2/h
  • Working Width: 48cm / 19"
  • Tine Type: Drum
  • Tine Depth: 8.9cm
  • Number of Tines: 24
  • Tine Pattern: 12cm x 18cm
FEATURE HIGHLIGHTS
Billy Goat AE400 outboard drive wheels
Outboard Drive Wheels
Eliminate both centre wheel slip and abuse from ramp loading with the tines engaged.
Billy Goat AE400 softest tine engagement and lift-n-lock disengagement
Tine Engagement and Lift-n-Lock Disengagement
For best in class comfort and productivity.
Billy Goat AE400 fold-n-go handles
Easy to Store and Service
Tilt up serviceability plus Fold-n-Go™ handles are excellent for transport and storage and fold without tools.
Billy Goat AE400 fold-n-go handles
Single Bolt Tine Fastener
Rock solid and easy to service.
Billy Goat AE400 fold-n-go handles
Water Tank
Proprietary water tank eliminates bulky side weights. 23 litre capacity.
Billy Goat AE400 Series 192 Mechanical Aerator
Billy Goat AE400 Fold-n-go handles
Billy Goat AE400 Softest tine engagement and exclusive lift-n-lock disengagement
Billy Goat AE400 Seried Outboard drive wheels
Billy Goat AE400 Series 19" Mechanical
Billy Goat DL12/13 extension kit
Solid Steel Tines
Part #: 360394-S
Excellent for improving drainage or for other no-plug applications. Sold as a set.
